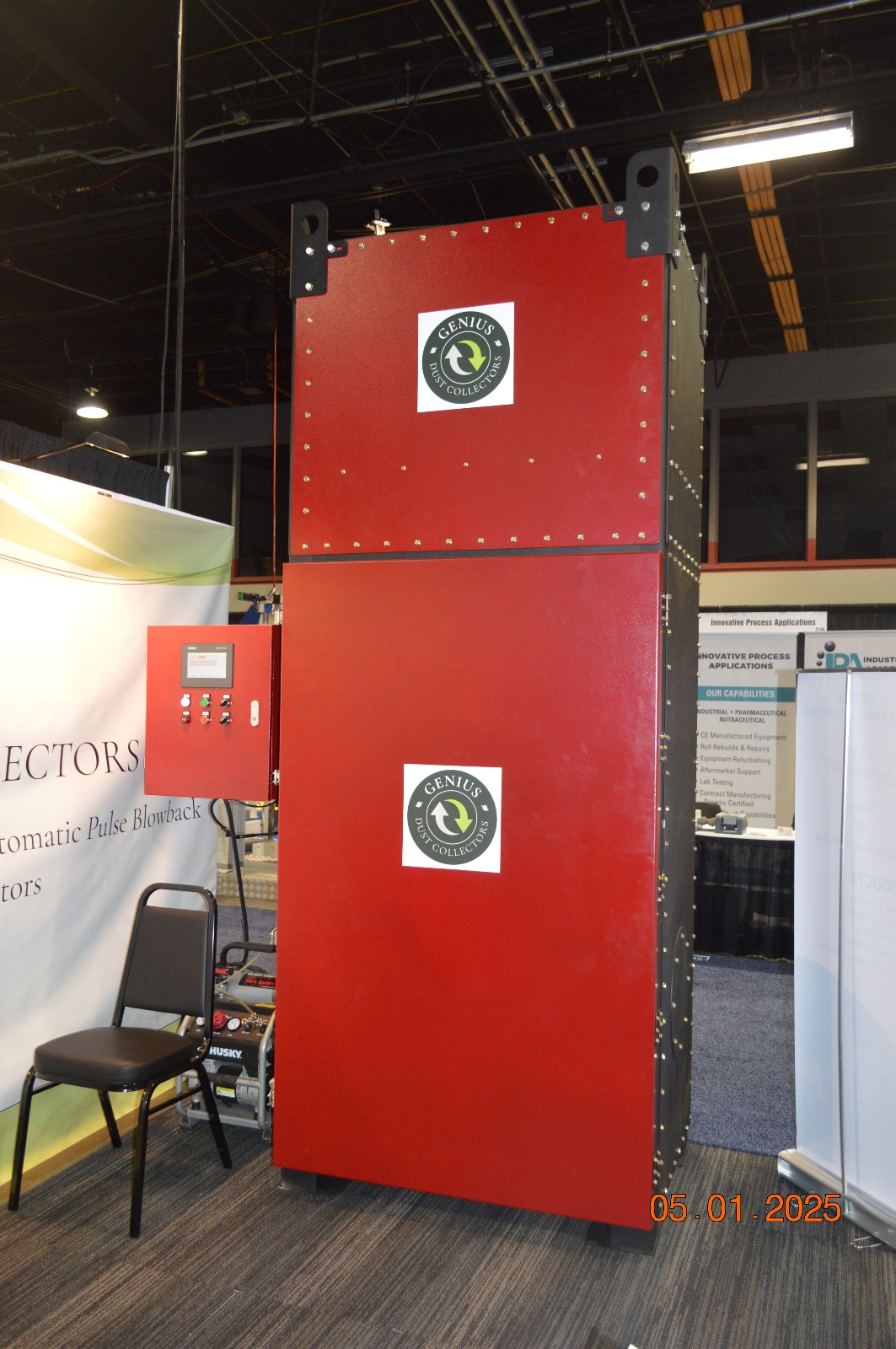

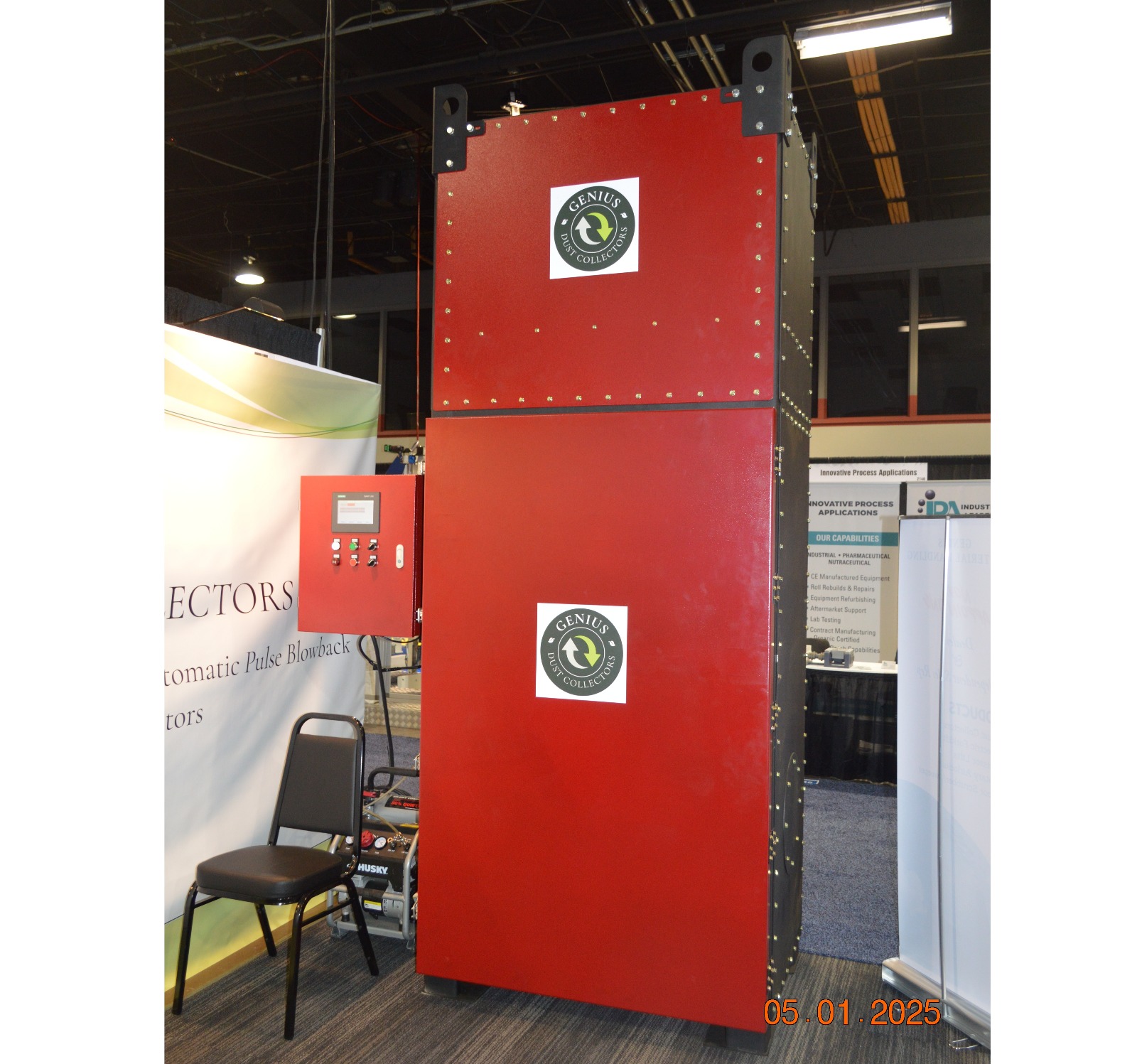

GST, GSM & GSS Series Genius Dust Collector with Programmable Touch Screen & Automatic Pulse Blowback System
| Product : | Genius Dust Collector |
| Series : | GST, GSM, GSS |
| Construction : | Heavy Duty Steel 1/4" & 7 GA |
| Capacity : | 1000-8000 CFM / 3 to 18 KW |
| Main Accessories : | Spark Arrestor |
| Name | Configuration |
|---|---|
| Filteration | Cartridge Type Dust Collector |
| CFM | 1000 to 8000 |
| Control Panel | Siemens Smart Touch Screen |
| Dust Cleaning Method | Automatic Pulse Blowback System with Touch Screen Programmable Parameters |
| Construction | Heavy Duty Steel 1/4" & 7 GA |
| Inlet & Outlet | Flexible Inlet and Outlet Locations |
| Noise | 65 dB +/- 7 (Based on Size of Dust Collector) |
| Door | Single Door Access with Bearing Hinges |
| Installation | Plug & Play, Factory Installed Controlled Panel with Complete Electrical Wiring |
| Filters | Different Types of Filter Materials |
| Electrical - Voltage & Frequency | 230V/460V - 60 Hz |
| Name | Configuration |
|---|---|
| Misc. Options | • Funnel Type • Slide Gate Valve • High Temperature Shut off • Smoke Detection Shut off • Overhead Light/Siren Fault Alarm • Sprinkler System • Remote Operation • Spark Arrester |
| Filter Media | • Polyester • Polyester + Anti-static • Polyester + Flame Retardant |
