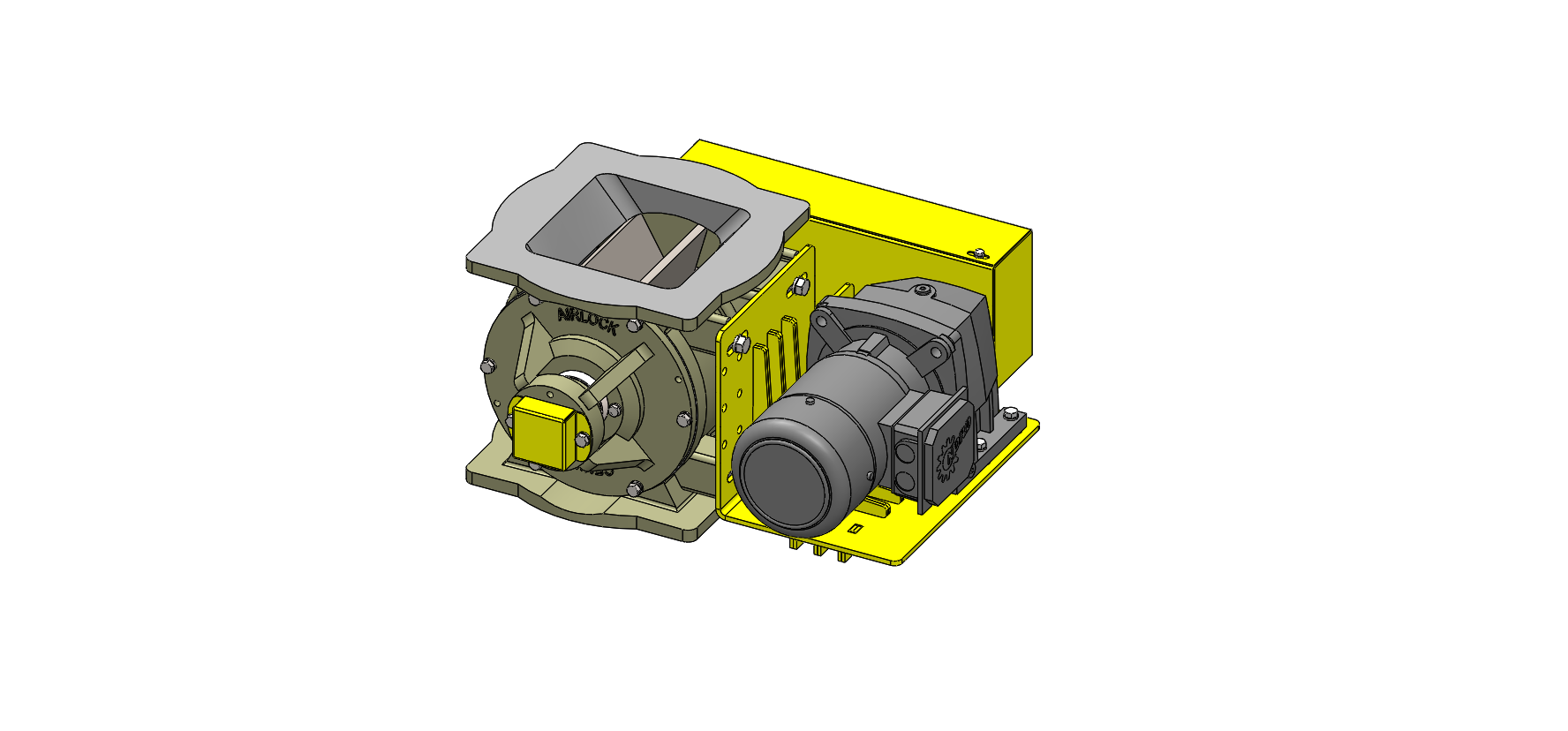

Standard 8” Heavy Duty Universal Series Cast Iron Rotary Airlock Valve with Powertrain
| Product : | Rotary Airlock Valve |
| Series : | Heavy Duty Universal CI Series |
| Construction : | Cast Iron |
| Size : | 8" |
| Capacity : | 0.31 Cubic Feet/Rev |
| Name | Configuration |
|---|---|
| Drill Pattern in Flange | AG Square |
| RPM of Rotor | 20 RPM |
| Operating Temp. Range | 51 Deg F to 100 Deg F |
| Rotor Type | Mild Steel non-Beveled |
| Cartridge Type | All Compression (5 Compression Seals in each end plate) |
| Packing Seal - Material Type | Graphited PTFE with oil |
| Plating | No Plating |
| Housing Construction | Standard Construction |
| MISC Options | None |
| Electrical - Voltage & Frequency | 1 HP, 230V/460V - 60 Hz |
| Name | Configuration |
|---|---|
| Drill Pattern in Flange | Standard: AG Square Options: AG Round, Custom Square, Custom Round |
| RPM of Rotor | Standard: 20 RPM Options: 15 RPM, 22 RPM, 25 RPM, other speeds |
| Operating Temp. Range | Standard: 51 Deg F to 100 Deg F Options: Other temperature ranges |
| Rotor Type | Standard: Mild Steel non-Beveled Options: Mild Steel Beveled, Mild Steel Closed End, Stainless Steel non-Beveled, Stainless Steel Beveled, Teflon Wear Bars, Metal Wear Bars (1/4" thick blade), Brass Wear Bars (1/4" thick blade), Rubber Wear Bars (bolted with metal retainer strips), Neoprene Wear Bars (bolted with metal retainer strips) |
| Cartridge Type | Standard: All Compression (5 Compression Seals in each end plate) Options: Other seal arrangements, Air purge |
| Packing Seal - Material Type | Standard: Graphited PTFE with oil (Std.) Options: Cotton Fiber packing with PTFE, PTFE with aramid corners, Kevlar Packing, Pure PTFE Packing, Pure Graphite |
| Plating | Standard: Standard (No Plating) Options: Chrome Plating (Housing, End Plates and Cartridges), Teflon Coating (Housing, End Plates and Cartridges), Nickel Plating, Ceramic Lining, Special Plating |
| Housing Construction | Standard: Standard Construction Options: V Plow |
| MISC Options | Standard: None Options: Outlet Finger Guard, Rotor Speed Sensor, Body Vents, Convey Line Dropout Box, Speed Switch, Air purged Seals, High temperature bearing, Digital Speed Display |
| Electrical - Voltage & Frequency | Standard: 230/460 - 60 Hz Options: Other Electrical Spec. |
Airlock Genius – Heavy-Duty Rotary Airlocks for Demanding Applications
The Standard Heavy-Duty Airlock from Airlock Genius combines the best features of multiple airlock series into one advanced design engineered for superior sealing, durability, and performance. Available in 6” to 16” valve sizes, each unit features precision CNC-machined components with a nominal gap of just 0.002”–0.004”, ensuring tight tolerances and reliable operation in high-pressure and high-temperature applications up to 700°F.
Built with cast iron or stainless steel construction, our airlocks accommodate both square and round flanges and include a wide throat opening for maximum pocket filling efficiency. The innovative Hybri-Seal® assembly—a hybrid cartridge with Teflon and packing seals—enhances sealing performance up to 10× better than standard designs. Outboard sealed bearings and polished rotor shafts further extend seal life and minimize maintenance.
Designed using advanced engineering analysis, each airlock is equipped with a high-quality TEFC powertrain, chain drive, and eight-vane mild steel rotor for rugged reliability. With a choice of custom options and Hybri-Seal® cartridge types, Airlock Genius provides the right solution for every bulk material handling, dust collection, and pneumatic conveying application.
To summarize, the 8″ Rotary Airlock Valve (HDUCI Series) is engineered for heavy-duty industrial performance, delivering reliable airlock sealing and smooth material discharge in dust collection and pneumatic conveying systems. Built with durable cast iron construction, this valve provides exceptional wear resistance, longer operational life, and consistent performance under continuous demanding conditions.
With a capacity of 0.31 cu ft/rev, this 8-inch HDUCI rotary valve ensures accurate material metering with minimal air leakage, helping maintain system efficiency, product quality, and airflow stability. It is ideal for handling powders, pellets, granules, sawdust, cement, grains, and similar dry bulk solids across multiple industries.
