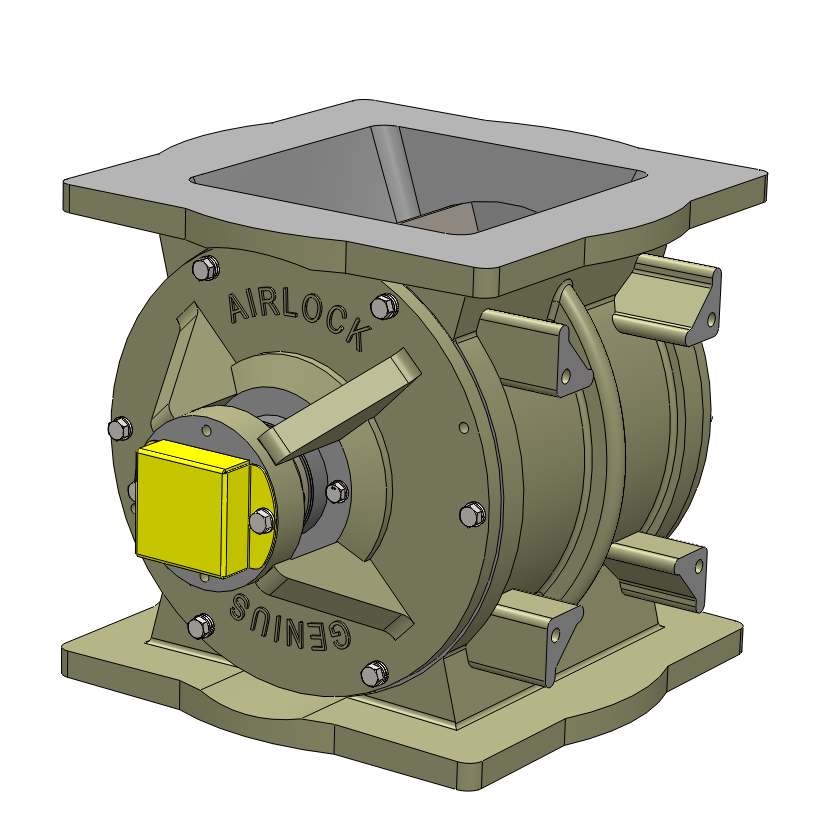

Standard 10” Heavy Duty Universal Series Cast Iron Rotary Airlock Valve with Powertrain
| Product : | Rotary Airlock Valve |
| Series : | Heavy Duty Universal CI Series |
| Construction : | Cast Iron |
| Size : | 10" |
| Capacity : | 0.58 Cubic Feet/Rev |
| Name | Configuration |
|---|---|
| Drill Pattern in Flange | AG Square |
| RPM of Rotor | 20 RPM |
| Operating Temp. Range | 51 Deg F to 100 Deg F |
| Rotor Type | Mild Steel non-Beveled |
| Cartridge Type | All Compression (5 Compression Seals in each end plate) |
| Packing Seal - Material Type | Graphited PTFE with oil |
| Plating | No Plating |
| Housing Construction | Standard Construction |
| MISC Options | None |
| Electrical - Voltage & Frequency | 1 HP, 230V/460V - 60 Hz |
| Name | Configuration |
|---|---|
| Drill Pattern in Flange | Standard: AG Square Options: AG Round, Custom Square, Custom Round |
| RPM of Rotor | Standard: 20 RPM Options: 15 RPM, 22 RPM, 25 RPM, other speeds |
| Operating Temp. Range | Standard: 51 Deg F to 100 Deg F Options: Other temperature ranges |
| Rotor Type | Standard: Mild Steel non-Beveled Options: Mild Steel Beveled, Mild Steel Closed End, Stainless Steel non-Beveled, Stainless Steel Beveled, Teflon Wear Bars, Metal Wear Bars (1/4" thick blade), Brass Wear Bars (1/4" thick blade), Rubber Wear Bars (bolted with metal retainer strips), Neoprene Wear Bars (bolted with metal retainer strips) |
| Cartridge Type | Standard: All Compression (5 Compression Seals in each end plate) Options: Other seal arrangements, Air purge |
| Packing Seal - Material Type | Standard: Graphited PTFE with oil (Std.) Options: Cotton Fiber packing with PTFE, PTFE with aramid corners, Kevlar Packing, Pure PTFE Packing, Pure Graphite |
| Plating | Standard: Standard (No Plating) Options: Chrome Plating (Housing, End Plates and Cartridges), Teflon Coating (Housing, End Plates and Cartridges), Nickel Plating, Ceramic Lining, Special Plating |
| Housing Construction | Standard: Standard Construction Options: V Plow |
| MISC Options | Standard: None Options: Outlet Finger Guard, Rotor Speed Sensor, Body Vents, Convey Line Dropout Box, Speed Switch, Air purged Seals, High temperature bearing, Digital Speed Display |
| Electrical - Voltage & Frequency | Standard: 230/460 - 60 Hz Options: Other Electrical Spec. |
